Security drones

The security drone can be an aerial surveillance technology used to enhance security in various contexts, such as border monitoring, critical infrastructure protection, or public safety in urban areas. The security drone is generally equipped with high-resolution cameras, thermal sensors, intrusion detection systems, and long-range communication, allowing it to detect and track suspicious activities over vast areas of land.

Currently, governments and municipalities are investing in camera surveillance systems to improve civil security. The 2 security drone systems developed by our design office, Cominthesky, were designed to meet this need.

The Super Eagle security drone: This drone system is adapted for the security of sensitive sites, open-air storage sites, and large private properties.

The Flying Sensor (FSS3) security drone: This drone system is adapted for the security of sites housing a nuclear power plant and for potentially polluting industrial sites (generally classified as SEVESO)

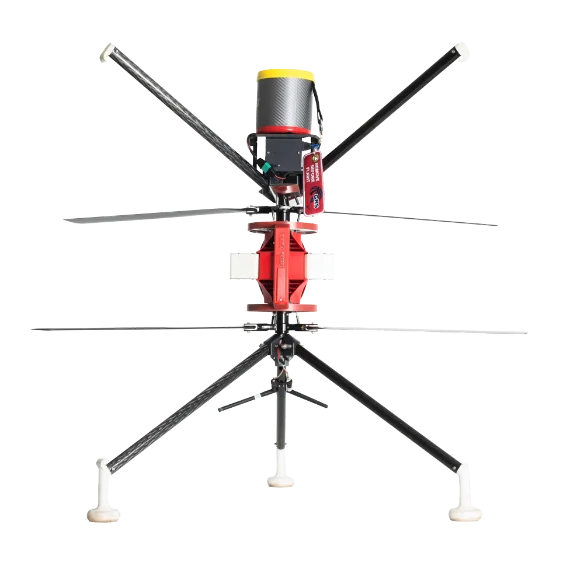

The security drone for nuclear power plants or SEVESO-classified sites: "The Flying Sensor FSS3"

Edouard GUILHOT, then CEO of Civic Drone, won a tender in 2014 with the ILL (Institut Laue-Langevin), a nuclear reactor located near the CEA in Grenoble, to deliver 2 customized Flying Sensor (FSS3) drone systems for this nuclear power plant. The goal was to provide security drone systems adapted for crisis management in the event of a potential crack in the nuclear reactor, following a tidal wave potentially caused by the failure of the EDF dam located just under 20 km upstream. This could occur in the event of major earthquakes on the fault line running from Italy into the Alps.

Functions of the Flying Sensor (FSS3) security drone

Automated and programmed scripted flight without a pilot
Scheduled and automated delivery of multiple radioactive measurement probes to different waypoints in a single flight, with sub-meter precision
The same drone must be able to carry a different payload to record 4 atmospheric samples at different waypoints
Flight in driving rain if necessary and in wind with gusts of up to 70 km/h
Flight range of up to 10 km around the reactor.
Drone tested to withstand the strong vibrations of an earthquake
Flight tested to operate on-site despite ambient magnetism.

Advantages of the helicopter-type Gyrocopter drone, which offers excellent efficiency

It stands out in the market due to its unique design.
The moment of inertia is low
(masses are close to the center of gravity)
It holds 2 patents.
It can hit obstacles without damage when equipped with its protective shield.
Low propeller frequency (800rpm)
Quiet and less stressful
On track to break the endurance record for this type of airframe
No external technical dependency, no possibility of espionage or hacking

Technical specifications of the FSS3 security drone

Dimensions: D=110 H=70 cm.

Weight: 4 – 7 kg

Flight time: 1h30

Max Speed: 50 km/h

Operating temperature: From -10°C to 40°C

Equipment: Dual GPS + / RTK / Lidar / Camera

Scenario: S1 S2 S3

Max Speed: 60 to 70 km/h

Request a quote

Security drone for industrial sites: "Super Eagle"

The security drone can also be used for monitoring industrial sites. Equipped with cutting-edge technologies such as night vision, thermal sensors, and high-resolution cameras, this drone can detect and report intrusions or incidents in real time. Its ability to perform regular patrols and cover vast areas quickly and flexibly makes it an essential tool for strengthening the security of industrial facilities. By integrating the security drone into their security strategies, companies can improve their response capabilities, reduce risks, and ensure the protection of their assets and personnel.
